Description
The Acoustic Energy AE100 is a compact standmount / bookshelf loudspeaker that exhibits qualities which perfectly embody those of Acoustic Energy.
The Acoustic Energy AE100 has been designed with a view to achieving high sound pressure levels from an extremely small enclosure. This is obtained principally through the use of a 110mm mid-bass drive unit built around an ultra high force, long throw motor system. Bass performance is augmented by a slot shaped duct allowing for a considerable cross sectional area while negating the issues of air turbulence.

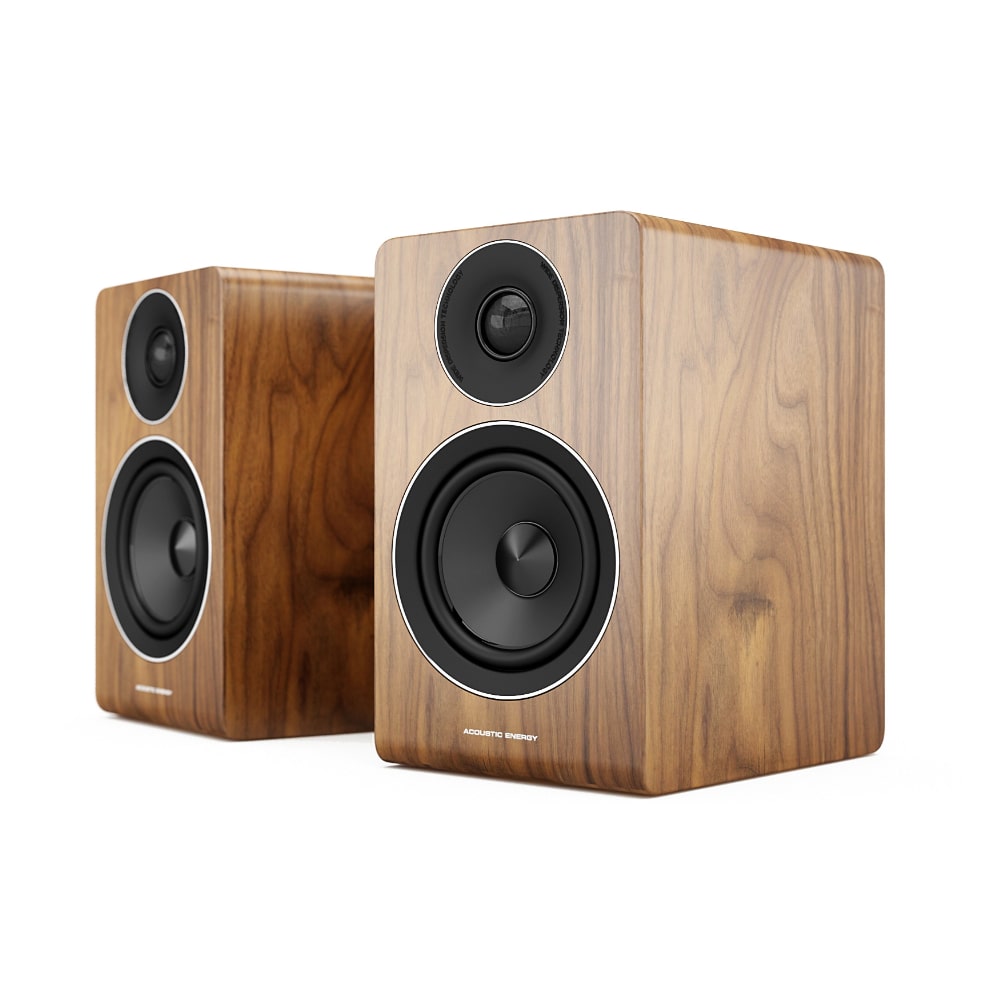

A 25mm soft dome tweeter featuring our Wide Dispersion Technology completes the driver compliment, that’s housed within an 18mm MDF cabinet. Taking design cues from the award winning Reference Series and finished in a choice of satin black or walnut vinyl veneer finishes, the AE100 is sure to look good wherever you choose to place it while delivering a sound that belies its compact size.
ACOUSTIC ENERGY AE100 SPECIFICATIONS
- Drive Unit: 110mm paper cone
- Tweeter: 25mm soft dome
- Frequency Range: 45Hz -35kHz
- Sensitivity: 87dB
- Peak SBL: 110dB
- Power Handling: 75w
- Crossover frequency: 3.6kHz
- Impedance: 4ohms
- Design: 2 way

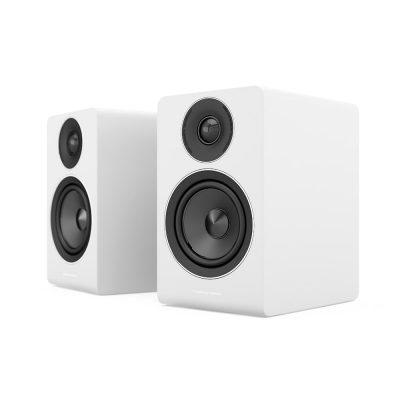

- Finishes: Satin Black, Satin White (limited edition) and Walnut vinyl veneer
- Dimensions: 270 x 160 x 240 (HxWxD)
TWEETER
Acoustic Energy’s bespoke 28mm soft dome tweeter was designed in tandem with the 100 Series bass driver to offer optimum integration and tonal matching. Paired with our Wide Dispersion Technology waveguide, the crossover region between drive units is audibly seamless whilst the high power neodymium motor assembly ensures reliable, distortion-free high-volume playback.
ACOUSTIC ENERGY AE100 – DRIVERS
The 110mm bass/mid driver used in the 100 Series has been developed with a high power, long excursion motor to provide satisfying volume levels and bass extension from relatively compact enclosures. The doped paper cone enables a higher crossover point for smoother mid-range and seamless crossover with the tweeter, creating extremely high fidelity, detailed and above all musical sound reproduction.
CABINET
The 100 Series uses sturdy 18mm MDF enclosures with carefully tuned bracing, reducing harmful resonances whilst retaining body and substance from compact, practical cabinets. The rear slot porting* enhances smooth bass extension with minimal room impact, allowing easy placement. The Acoustic Energy AE109 and AE120 feature inert mass-loading for additional stability and acoustic damping, all models come supplied with slim magnetic grilles.
* The AE108² is a sealed box with no slot port.
