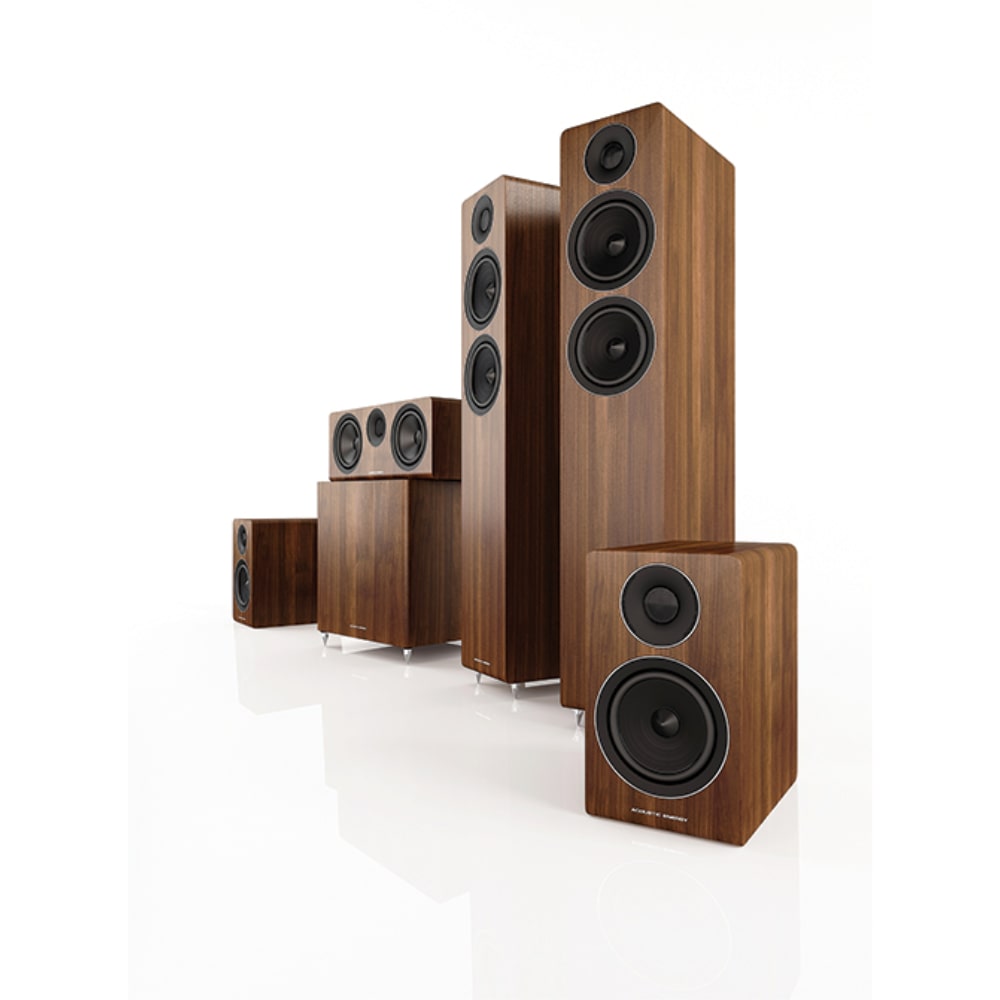

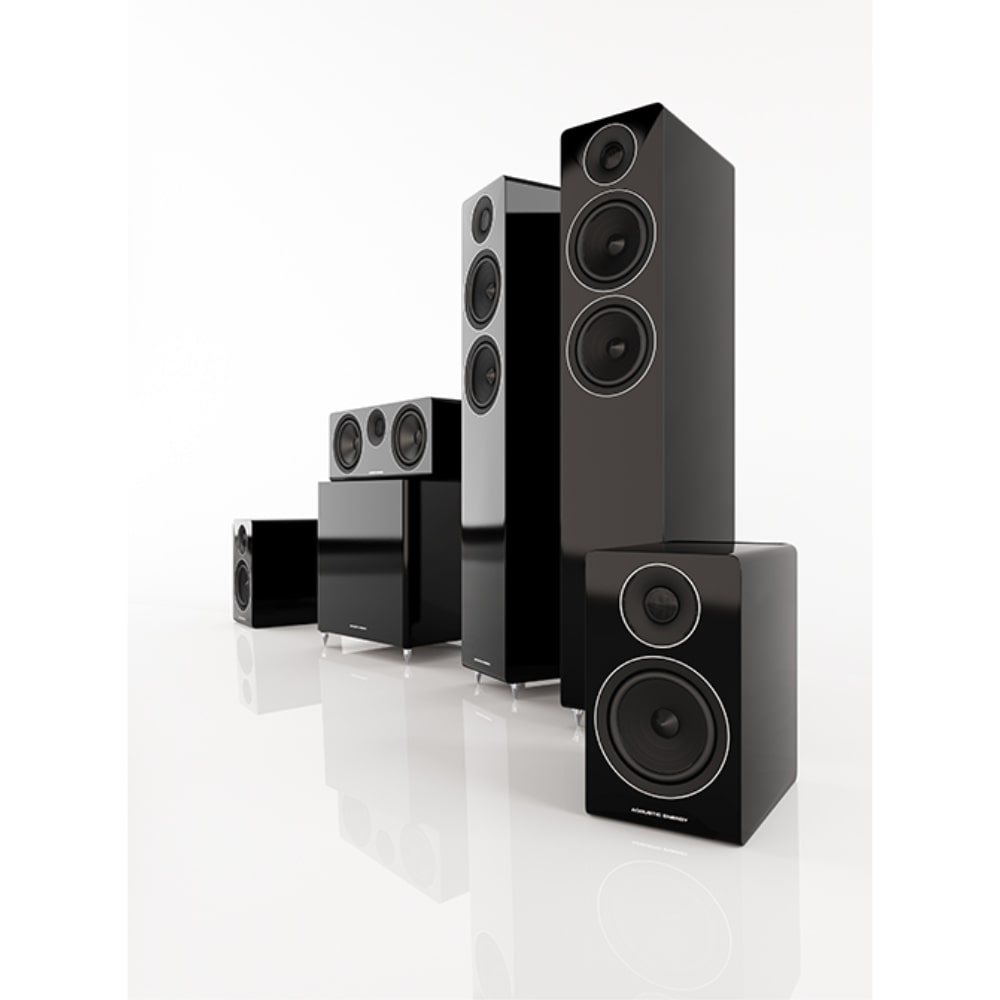

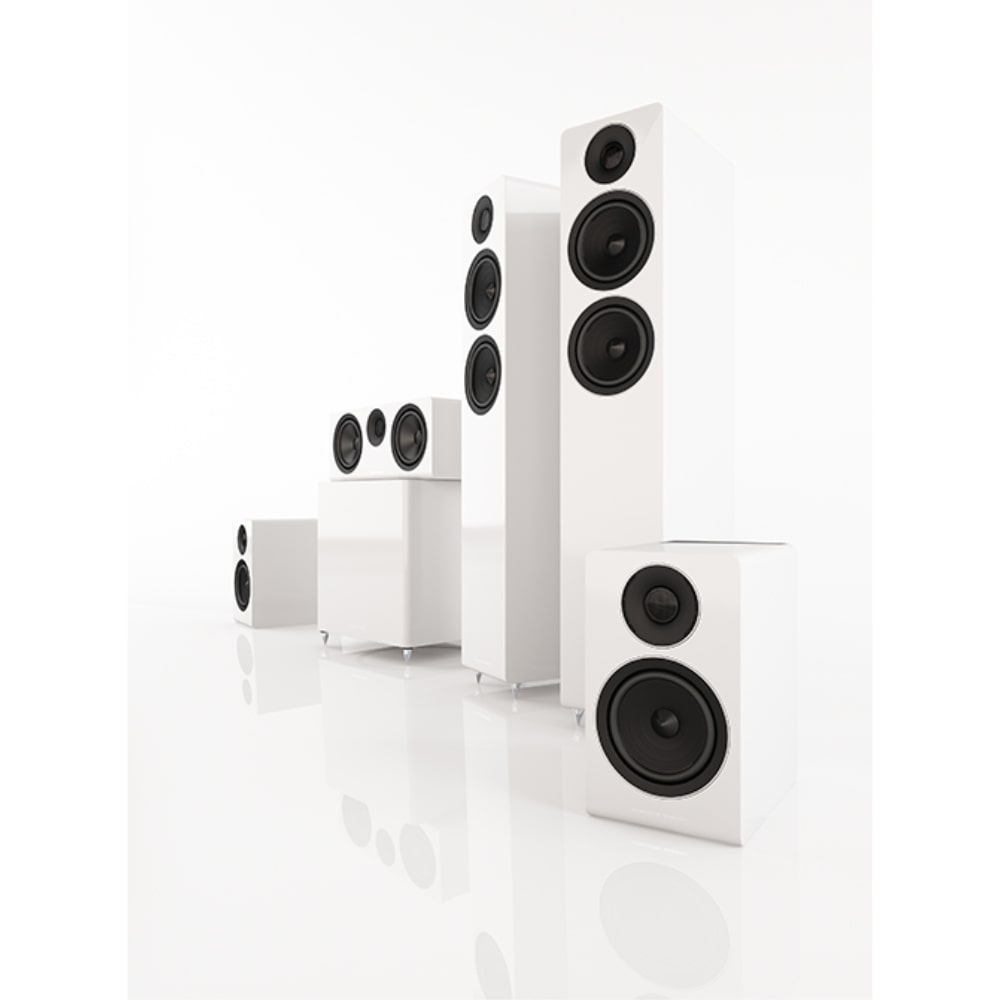

Acoustic Energy AE300 5.1 Package Home Cinema System

Description

The Acoustic Energy AE300 5.1 Package Series features multiple upgrades over the entry-level 100 Series, all designed to improve both audio performance and aesthetics, befitting of its more premium status. Bespoke new drive units have been designed in tandem to offer seamless tonal integration in addition to low distortion and high power handling benefits. The 28mm aluminium dome tweeter also features our WDT Wide Dispersion Technology™ and a re-designed 130mm aluminium mid-bass driver uses a ceramic aluminium sandwich cone and long throw motor system. The seamless cabinet enclosures boast an inert 18mm high density MDF material with proprietary internal bracing technology to reduce cabinet colouration. They’re finished in attractive real open grain walnut wood veneer, piano grade high gloss black or white lacquer options.

The result is a premium-finished package which offers a refined, accurate and above all, enjoyable musical experience. Embodying all the qualities Acoustic Energy are famous for… and designed for the love of music.

ACOUSTIC ENERGY AE300 LOUDSPEAKER SPECIFICATIONS

• Bandwidth: 45Hz -30kHz
• Sensitivity: 86dB
• Peak SBL: 112dB
• Power Handling: 100w
• Crossover frequency: 2.8kHz
• Impedance: 6ohms
• Design: 2 way
• Dimensions: 300 x 175 x 260 (HxWxD)
• Weight: 6.5kg (each)
• Finishes: Piano Gloss Black, Piano Gloss White and real Walnut wood veneer

Tracing its lineage back to the original AE1, the AE300 uses the latest generation of our 130mm mid-bass drive unit. Featuring a brand new ceramic aluminium sandwich cone with an ultra-shallow profile and ultra-high force, long throw motor system, this new driver boasts improved dispersion, extended bass slam and overall power handling.

A new 28mm aluminium tweeter has been developed for the 300 Series which offers high power handling and a low fundamental resonance to reduce distortion. However, the main benefit to this new design is the excellent dispersion characteristics thanks to our Wide Dispersion Technology waveguides. The waveguides shape the acoustic output of the tweeter to match the woofer and provide a wider sweet-spot in your listening environment.

The inert 18mm high density MDF cabinet utilises proprietary bracing technology derived from the award-winning Reference Series, to reduce cabinet colouration and allow the new transducers to breath freely within the listening environment. The slot shaped duct port on the rear of the speaker augments the bass output and has been carefully developed to reduce the effect of air turbulence with a clean undistorted bass performance.

The result is an audio product with clean, uncluttered lines delivering a thrilling and powerful presentation discerning Acoustic Energy owners have come to expect for over 30 years. Finished in a choice of Piano gloss black, white or satin real walnut wood veneer finishes, the AE300 will easily integrate within any home décor placed on speaker stands or bookshelves.

The Acoustic Energy AE307 is a new centre channel loudspeaker suitable for home cinema and multi-channel music systems. The Acoustic Energy AE307 uses the latest generation of our 130mm mid-bass drive unit. Featuring a brand new ceramic aluminium sandwich cone with an ultra-shallow profile and ultra-high force, long throw motor system, this new driver boasts improved dispersion, extended bass slam and overall power handling.

ACOUSTIC ENERGY AE307 CENTER CHANNEL SPECIFICATIONS

• Bandwidth: 42Hz -30kHz
• Sensitivity: 89dB
• Peak SBL: 115dB
• Power Handling: 175w
• Crossover frequency: 296Hz / 2.56kHz
• Impedance: 6ohms
• Dimensions: 175 x 460 x 260 (HxWxD)
• Weight: 9kg (each)
• Finishes: Piano Gloss Black, Piano Gloss White and real Walnut wood veneer

A new 28mm aluminium tweeter has been developed for the 300 Series which offers high power handling and a low fundamental resonance to reduce distortion. However, the main benefit to this new design is the excellent dispersion characteristics thanks to our Wide Dispersion Technology waveguides. The waveguides shape the acoustic output of the tweeter to match the woofer and provide a wider sweet-spot in your listening environment. This is particularly beneficial to ensure constant audio performance across the front channels of your system when using the Acoustic Energy AE309 or AE300’s for front left and right channels.

The inert 18mm high density MDF cabinet utilises proprietary bracing technology derived from the awardwinning Reference Series, to reduce cabinet colouration and allow the new transducers to breath freely within the listening environment. The slot shaped duct port on the rear of the speaker augments the bass output and has been carefully developed to reduce the effect of air turbulence with a clean undistorted bass performance.

The result is a centre channel with clean, uncluttered lines delivering a thrilling and powerful presentation discerning Acoustic Energy owners have come to expect for over 30 years. Finished in a choice of Piano gloss black, white or satin real walnut wood veneer finishes, the AE307 fits easily into most AV cabinets and stands integrating within any home décor.

ACOUSTIC ENERGY AE308 SUBWOOFER SPECIFICATIONS

• Type: Sealed box, downward firing driver
• Drive unit: 12” High-excursion doped and stiffened paper cone
• Frequency response: 26Hz-120Hz +/- 6dB
• Inputs: Low level stereo RCA, High level stereo binding posts, LFE RCA
• Power output: 500 Watts RMS
• Crossover frequency: 40-120Hz rotary control
• Phase: 0-180 degrees rotary control
• Amplifier type: Class D
• Mains input voltage: 115-240 volts switchable
• Dimensions: 360 x 360 x 360mm (HxWxD)
• Net weight: 16.5kg
• Finishes: Piano Gloss Black, Piano Gloss White and real Walnut wood veneer

In Music mode the 308 will perform in a balanced, accurate manner, extending low frequencies of the main speakers naturally and seamlessly down to 26Hz (+/-6dB). In Movie mode there will be additional “slam” on offer to aid explosive movie soundtracks in AV systems. Finally Impact mode trades outright extension for maximum volume and serious impact, more akin to a club set-up for when you really want to party hard!

The Acoustic Energy AE308 is available in attractive real wood American walnut veneer, piano gloss black or white lacquer to match the other 300 Series models and has sturdy carpet-piercing spikes which come with convenient rubber caps for use on hard flooring.

ACOUSTIC ENERGY AE309 FLOORSTANDING SPECIFICATIONS

• Bandwidth: 38Hz -30kHz
• Sensitivity: 89dB
• Peak SBL: 115dB
• Power Handling: 175w
• Crossover frequency: 296Hz / 2.56kHz
• Impedance: 6ohms
• Design: 2.5 way
• Dimensions: 900 x 175 x 280 (HxWxD)
• Weight: 22kg (each)
• Finishes: Piano Gloss Black, Piano Gloss White and Walnut real wood veneer

The AE309 uses two latest generation 130mm mid-bass drive units. Featuring a brand new ceramic aluminium sandwich cone with an ultra-shallow profile and ultra-high force, long throw motor system, this new driver boasts improved dispersion, extended bass slam and overall power handling.

A new 28mm aluminium tweeter has been developed for the 300 Series which offers high power handling and a low fundamental resonance to reduce distortion. However, the main benefit to this new design is the excellent dispersion characteristics thanks to our Wide Dispersion Technology waveguides. The waveguides shape the acoustic output of the tweeter to match the woofer and provide a wider sweet-spot in your listening environment.

The inert, 18mm high density MDF cabinet utilises proprietary bracing technology derived from the award-winning Reference Series, to reduce cabinet colouration and allow the new transducers to breath freely within the listening environment. The slot shaped duct port on the rear of the speaker augments the bass output and has been carefully developed to reduce the effect of air turbulence with a clean, undistorted bass performance. The base of the cabinet is pre-loaded with an inert mass material which adds damping and reduces cabinet colouration. The mass loading coupled with 8mm floor spikes help stability and provide a solid foundation for the drive units to operate without resonances from the cabinet interacting with the floor surface.

The result of this latest drive unit technology and enclosure design is a slim-line, powerful floor-standing loudspeaker for the discerning listener when refined audio quality coupled with elegant aesthetics are paramount. Finished in a choice of Piano gloss black, white or satin real walnut wood veneer finishes, the Acoustic Energy AE309 will easily integrate within any home décor.

ACOUSTIC ENERGY AE300 5.1 PACKAGE – TWEETER

A new 28mm aluminium tweeter has been developed for the 300 Series which offers high power handling and a low fundamental resonance to reduce distortion. However, the main benefit to this new design is the excellent dispersion characteristics thanks to our Wide Dispersion Technology waveguides. The waveguides shape the acoustic output of the tweeter to match the woofer and provide a wider sweet-spot in your listening environment.

ACOUSTIC ENERGY AE300 5.1 PACKAGE – DRIVERS

Tracing its lineage back to the original AE1, the AE300 uses the latest generation of our 130mm mid-bass drive unit. Featuring a brand new shallow profile aluminium sandwich cone with an ultra-high force, long throw motor system. This new driver boasts improved dispersion, extended bass slam and overall power handling.

ACOUSTIC ENERGY AE300 5.1 PACKAGE – CABINET

The inert 18mm high density MDF cabinet utilises proprietary bracing technology derived from the award-winning Reference Series, to reduce cabinet colouration and allow the new transducers to breath freely within the listening environment. The slot shaped duct port on the rear of the speaker* augments the bass output and has been carefully developed to reduce the effect of air turbulence with a clean undistorted bass performance.

* The AE308 is a sealed box with no slot port.
