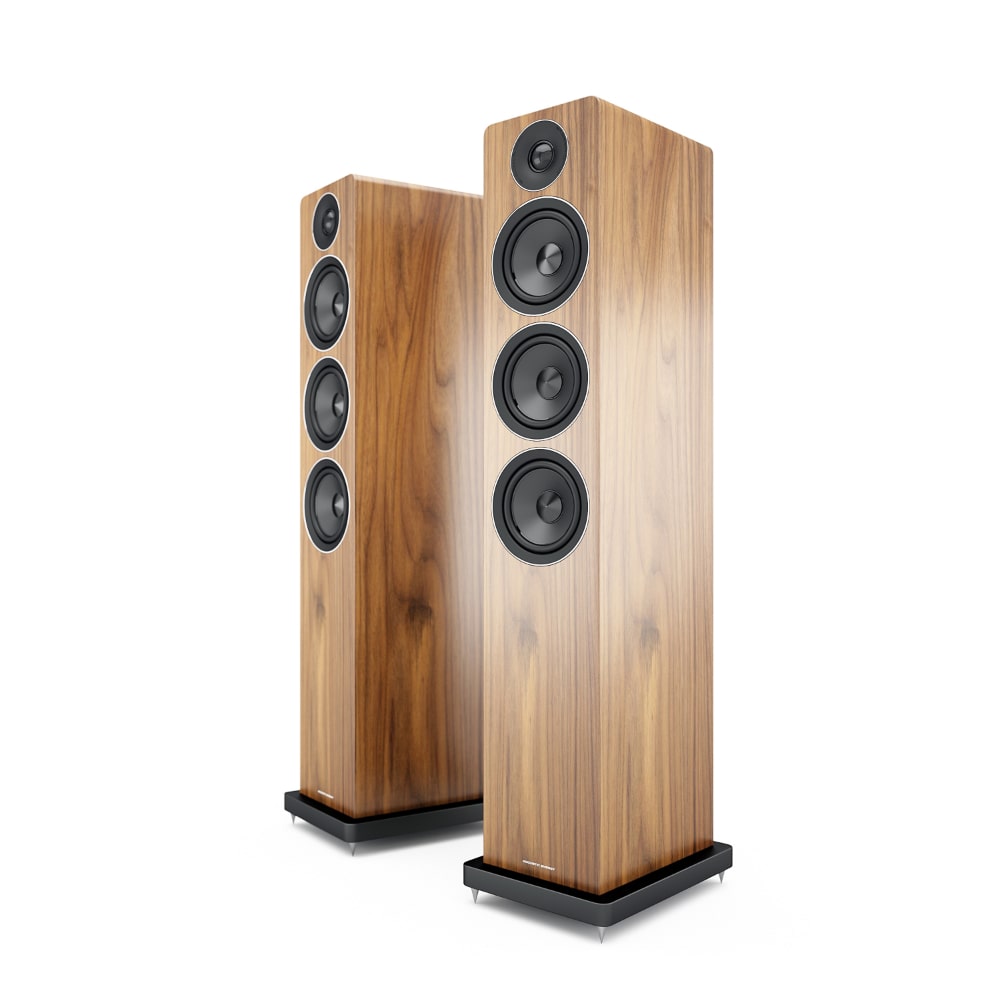

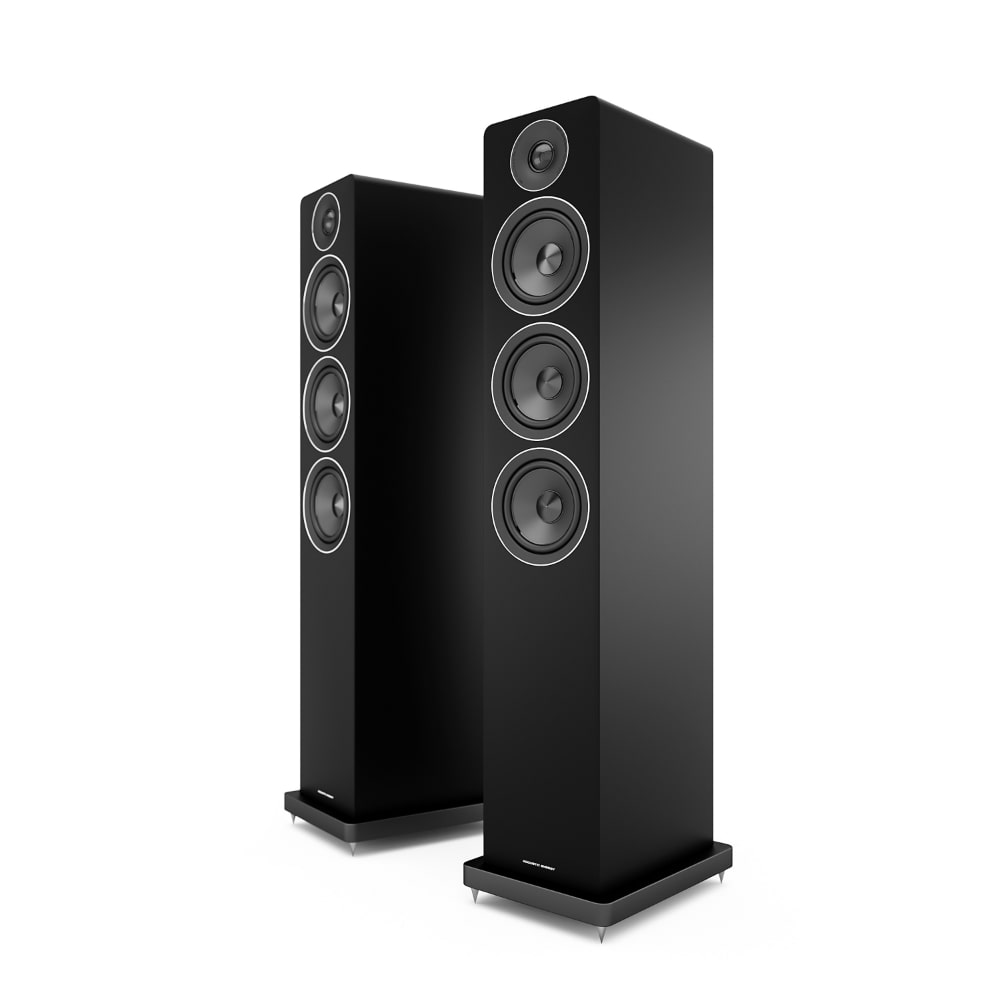

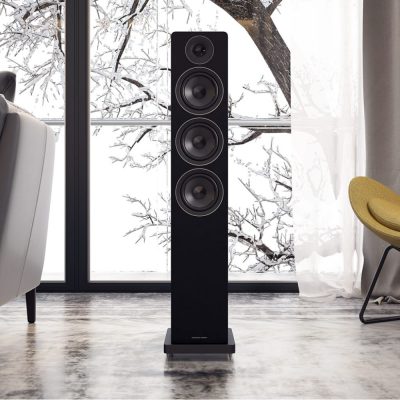

Acoustic Energy AE120 Loudspeaker (Pair)

Description

As a flagship, the Acoustic Energy AE120 is the largest model in the 100 series range and a true 3-way design. The speaker offers a big sound from a slimline enclosure, tastefully styled to blend into a wide range of domestic environments. Twin bass drive units underpin the room filling performance with a dedicated mid-range driver housed in its own enclosure, carefully designed to mitigate the harmful effects of rear wave reflections. Integrated within the perfectly matched Wide Dispersion Technology (WDT) waveguide, Acoustic Energy’s 25mm soft dome tweeter manages the high frequencies with controlled dispersion, high sensitivity and low distortion.

The 3-way crossover is impedance compensated to avoid the resonance issues which would otherwise slow bass delivery and colour mid-range performance. Particular attention has also been paid to the phase and time alignment for optimum integration and soundstage. The result is a loudspeaker offering smooth, wide dispersion high frequencies with a clean mid-range and lightning fast bass. The inert cabinet enclosure is constructed from 18mm MDF and like it’s smaller AE109 brother, supplied mass loaded to help dampen cabinet vibrations. The internal bracing system has been carefully tuned to reduce cabinet resonances and mid-range colouration, whilst the new AE120 benefits from a subtlety styled, discrete satin black plinth to aide stability, further improving dynamics and stereo focus.

ACOUSTIC ENERGY AE120 SPECIFICATIONS

• Drive Units: 110mm paper cones
• Tweeter: 25mm soft dome
• Bandwidth: 40Hz -35kHz
• Sensitivity: 90dB
• Peak SBL: 114dB
• Power Handling: 200w
• Crossover frequency: 2.4kHz
• Impedance: 6ohms
• Design: 3 way
• Dimensions: 900 x 200 x 300 (HxWxD, inc. plinth)
• Weight: 19 kg (each)
• Finishes: Satin Black and Walnut vinyl veneer

TWEETER

Acoustic Energy’s bespoke 28mm soft dome tweeter was designed in tandem with the 100 Series bass driver to offer optimum integration and tonal matching. Paired with our Wide Dispersion Technology waveguide, the crossover region between drive units is audibly seamless whilst the high power neodymium motor assembly ensures reliable, distortion-free high-volume playback.

ACOUSTIC ENERGY AE100 – DRIVERS

The 110mm bass/mid driver used in the 100 Series has been developed with a high power, long excursion motor to provide satisfying volume levels and bass extension from relatively compact enclosures. The doped paper cone enables a higher crossover point for smoother mid-range and seamless crossover with the tweeter, creating extremely high fidelity, detailed and above all musical sound reproduction.

CABINET

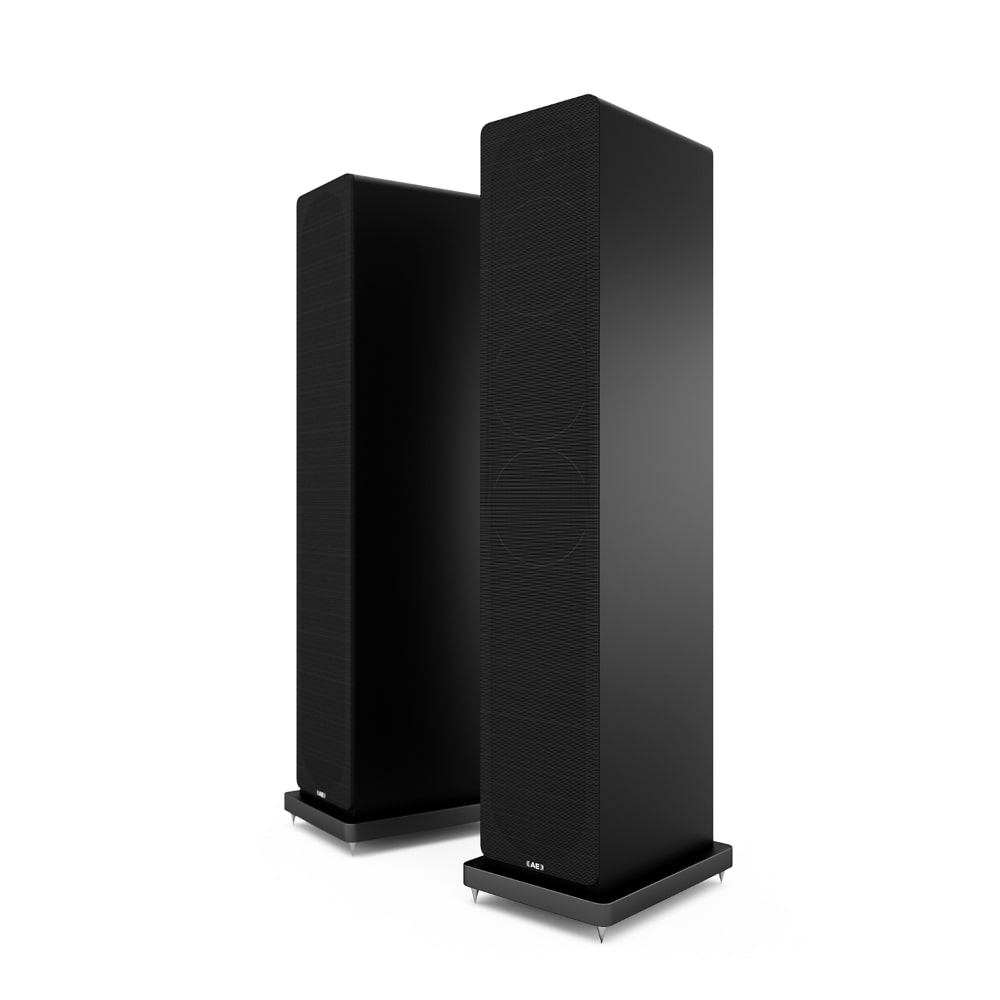

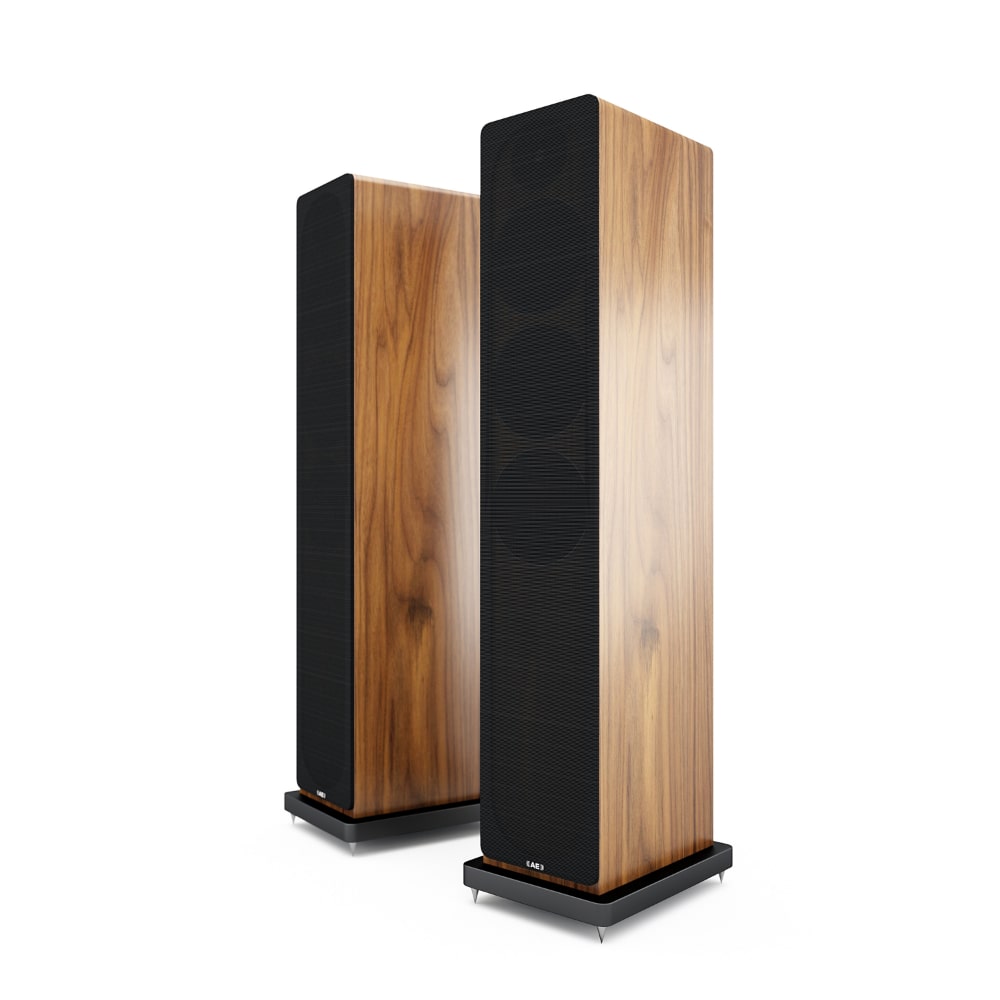

The 100 Series uses sturdy 18mm MDF enclosures with carefully tuned bracing, reducing harmful resonances whilst retaining body and substance from compact, practical cabinets. The rear slot porting* enhances smooth bass extension with minimal room impact, allowing easy placement. The Acoustic Energy AE109 and AE120 feature inert mass-loading for additional stability and acoustic damping, all models come supplied with slim magnetic grilles.

* The AE108² is a sealed box with no slot port.
