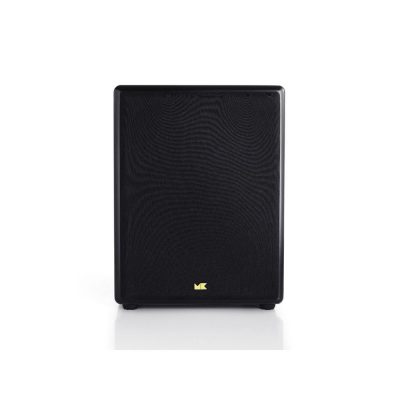

M&K Sound V12 Compact Subwoofer (Each)

Description

The M&K Sound V12 subwoofer carry THX Select 2 certification resulting in ultra low distortion and high dynamic performance in a compact format.

M&K SOUND V12 SUBWOOFER SPECIFICATIONS

• Amplifier Power: 300 watt RMS /500 watt peak
• Frequency Response: 20 – 200 Hz +/- 2 dB
• Total Harmonic Distortion: 0.5% 300 watt, 4 ohm
• AC Power Consumption: Standby/Average/Max 0,5/50/300W
• AC Line Voltage: 100-240 VAC 50/60Hz 6.3A
• LFE Input: L/R line level RCA
• LFE Passthrough Output: L/R line level RCA
• Lowpass Filters: 60–200 Hz Continuously variable, No low pass THX mode
• Phase: 0-180 deg : Continuously variable
• Volume control: Continuously variable / Fixed THX
• Dimensions HxWxD: 18,3” x 14,1“ x 15,7” / 466 x 360 x 400 mm
• Weight: 48,5 lbs / 22,0 kg

PHASE-FOCUSED CROSSOVER

M&K Sound’s exclusive transient-optimized Phase-Focused crossover ensures extremely coherent response over a wide horizontal and vertical listening window. While other crossover designers consider just frequency response on one axis (the sweet spot), M&K Sound addresses response in both the time and frequency domains, at a wide range of angles in both the vertical and horizontal planes to optimize the speaker’s three-dimensional response.

M&K SOUND V8 DEEP BASS CONCEPT

All M&K Sound subwoofers employ M&K Sound’s Deep Bass Concept based on careful matching of drivers, amplifiers, sealed enclosures and M&K Sound’s exclusive Headroom Maximizer circuit.Headroom MaximizerTM allows the full, uncompressed dynamics of the audio signal to be heard, while preventing amplifier clipping and distortion. M&K’s Deep BassTM sealed-box design reproduces bass frequencies below 20Hz with exceptional transient response, accuracy and authority.

PUSH-PULL DUAL DRIVER

The top of the line M&K Sound subwoofers employ a unique Push-Pull Dual Driver configuration to eliminate even-order harmonic distortion and double the sound power per watt of amplifier power, for 6 dB of additional output and major improvements in bass detail, articulation, authority and impact.

TIMBRE MATCHING

Conventional surround systems create a disruptive audible discontinuity when the sound shifts from one speaker to another. Timbre-matched M&K Sound speaker systems employ similar or identical drivers and similar or identical crossovers to achieve identical frequency response and tonal characteristics from all channels for a seamless three-dimensional soundfield.
